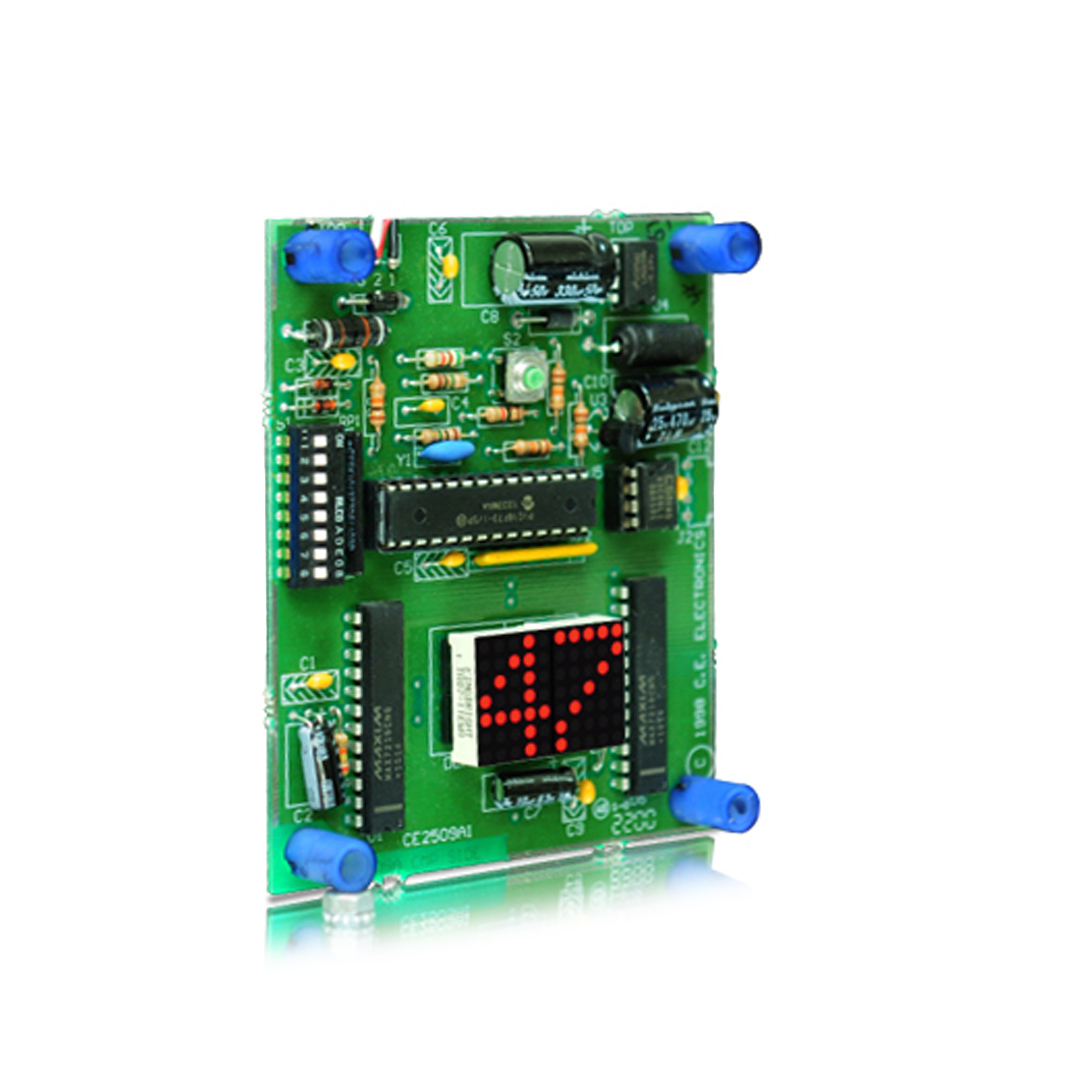

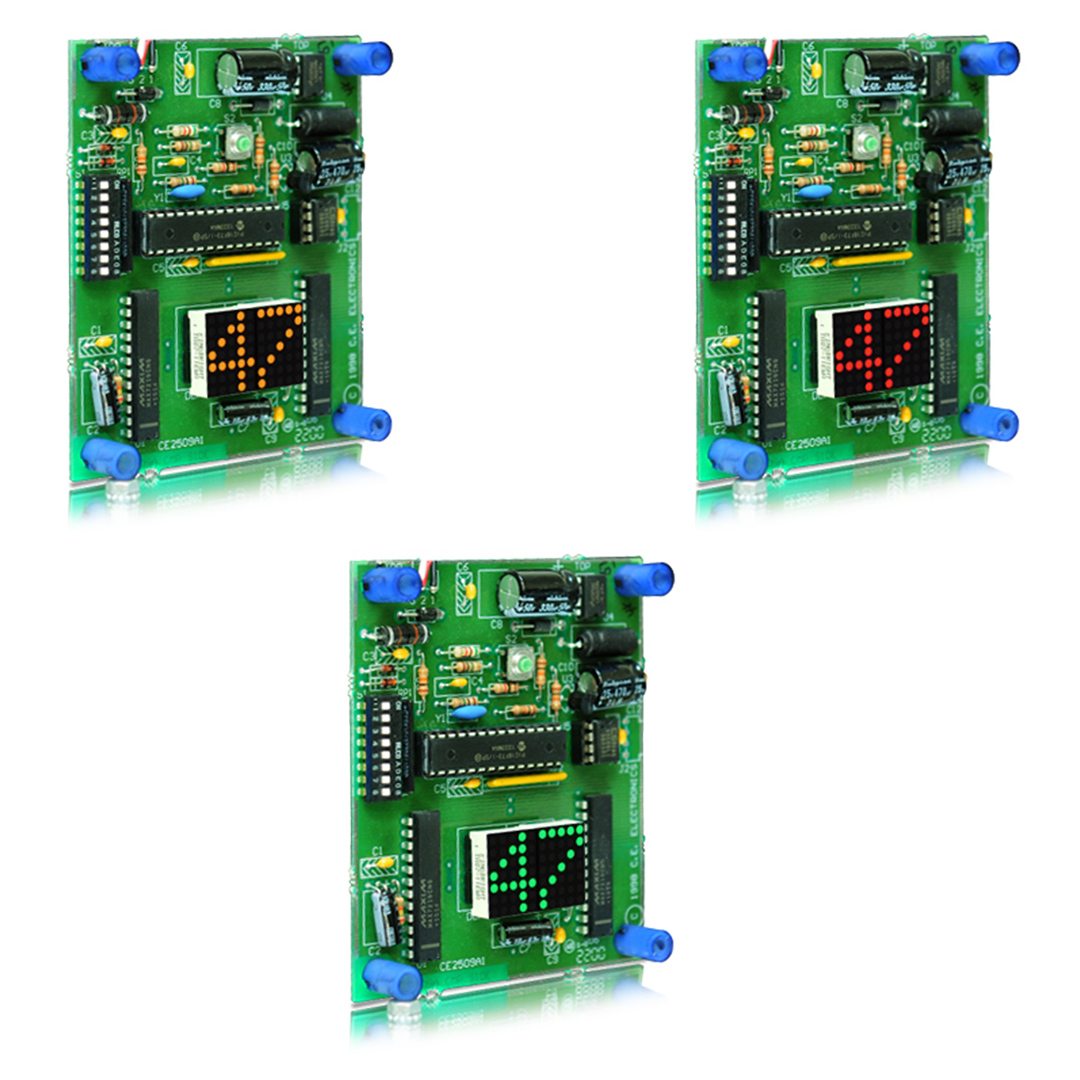

EV207-XXXXX | 17.78mm Dot Matrix [.7″] Characters 76.2mm W x 91.44mm H x 15.875 D

DOT MATRIX

Dot Matrix LED Digital Indicator for floor position display, as well as car direction, if desired. Any alphanumeric or custom character can be displayed in either single digit with an arrow or double-digit floor designations.

Typical Applications:

•  Car-OP Panel
•  Transom-car or Hall

Features:

•  Low-cost design
•  Self-contained unit
•  Latched input
•  Scrolling & rollover
•  Hall lantern option
•  Passing chime output
•  Self Testing
•  Message input
•  Error detection and correction feature

Dimensions:

•  3.000″W x 3.600″H x 0.625″D
• 76.2mm W x 91.44mm H x 15.875 D

Note:

1. This is not a stand-alone unit. Must be used in conjunction with MCCU controller.
