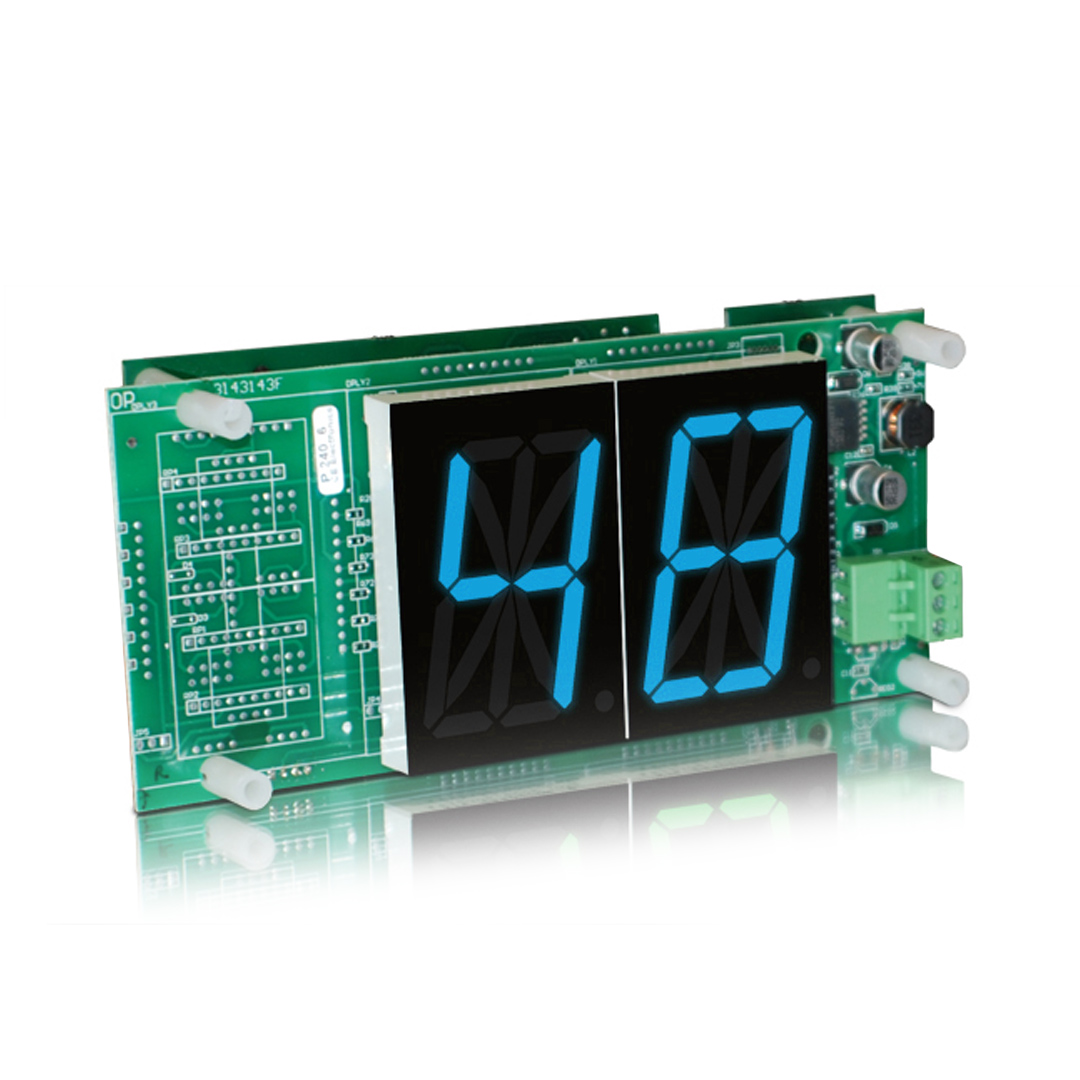

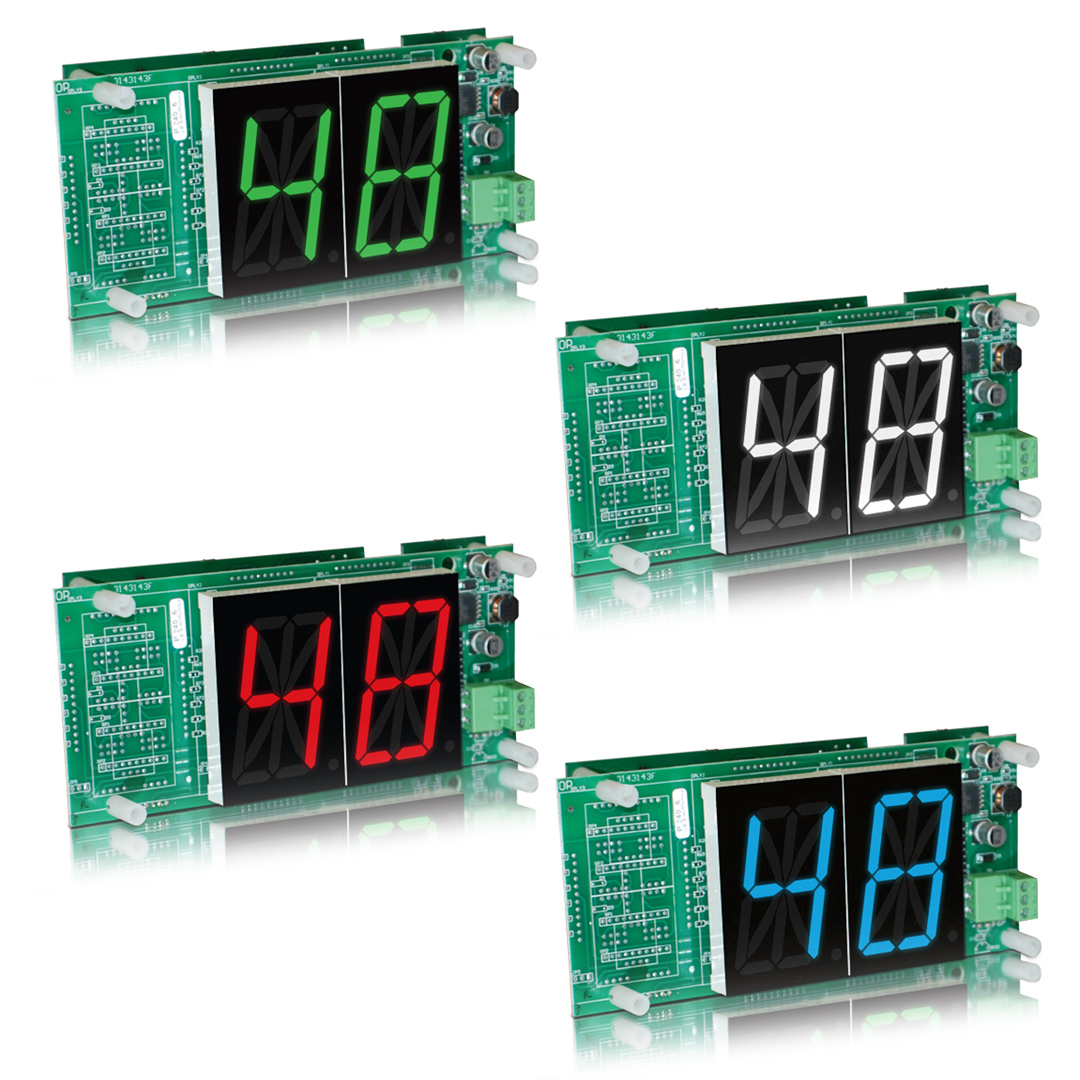

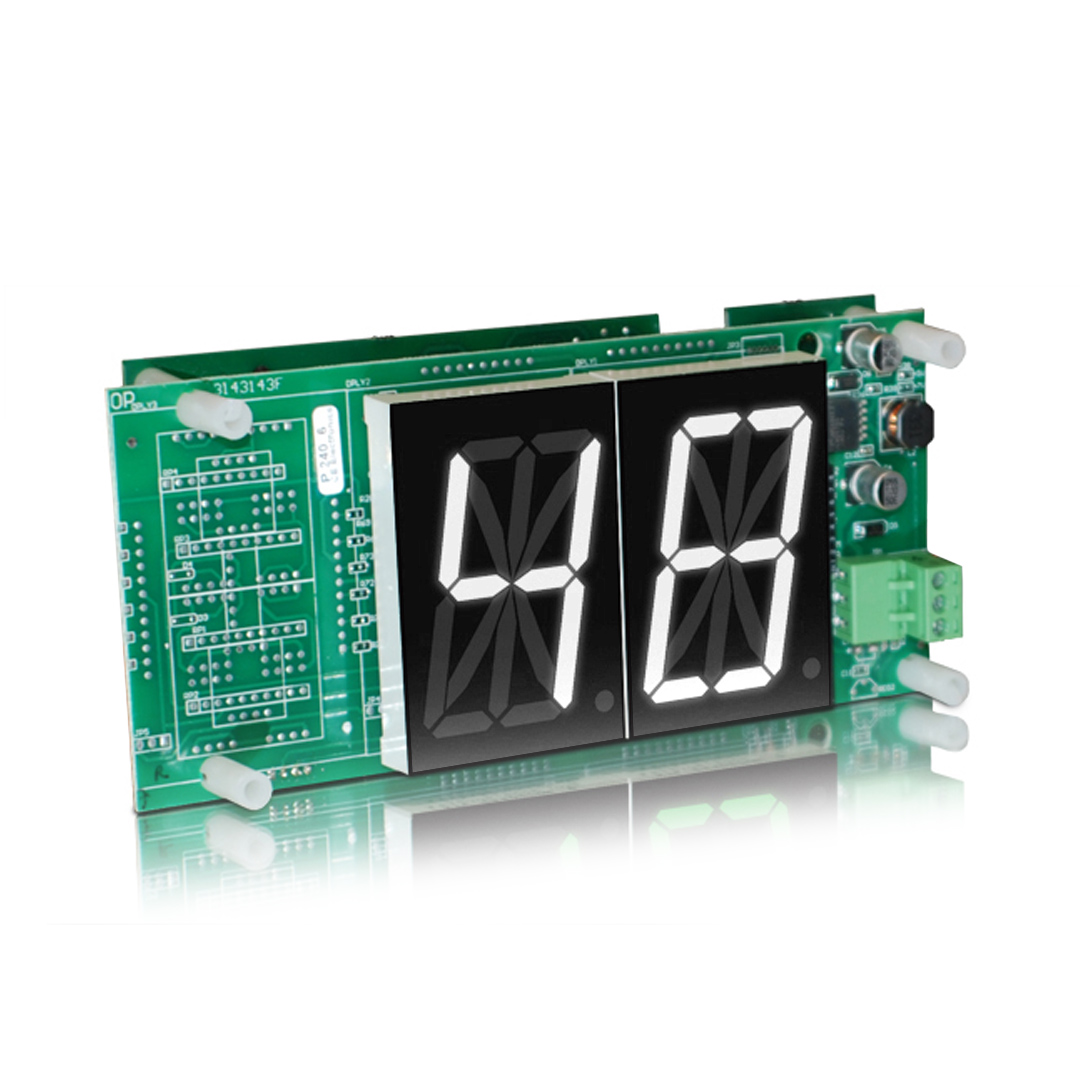

SH222-XXXX | 2.2 Inch Characters Segmented LED main digital indicator for floor position

SEGMENTED 2.2″ DISPLAY
Segmented LED main digital indicator for floor position. Any alphanumeric character can be displayed single digit or double digit floor designations.

Typical Applications

• Car-OP Panel
•  Transom-car or hall

Features:

•  Self contained
•  Auxiliary output
•  Latched inputs
•  On board power supply
•  Self testing
•  Passing chime output
•  Error detection and correction feature
•  UL
•  8 inputs

Dimensions:

•  6.7″W x 3.1″H x 2.75″D   |   2.2″ CHARACTERS

Note:
1. *May need additional decoder card.

2. If a special voltage is required, please consult factory.

3. Required 110VAC or optional 220VAC – Consult factory for 220AC
