SC015-X | SC110-X | Decoder Card

SC015-X | DECODER CARD

15 input to binary output decoder board. The decoder card converts discrete floor inputs to binary to minimize the number of wires in the hoistway.

Features:

•  Simple diode matrix design
•  1-year factory warranty
•  1 amp silicon decoding diodes
•  Reliable terminal block hookup
•  Accepts voltage of 5 to 400 volts

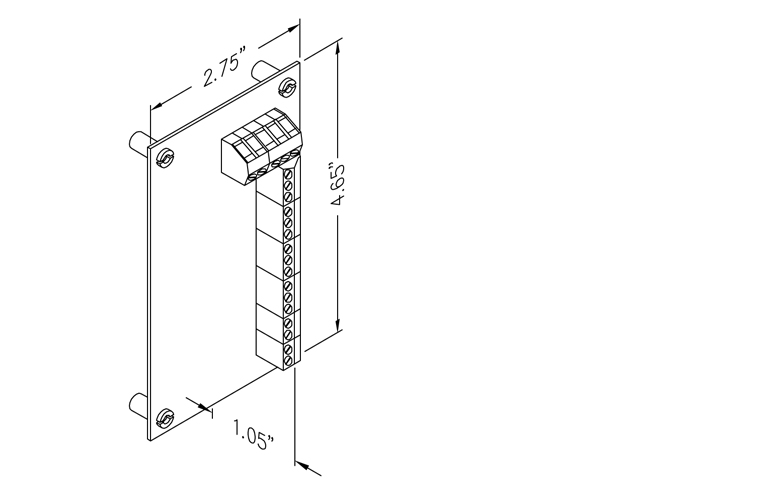

Dimensions:

•  2.75″W x 4.65″H x 1.05″D

SC110-X | DECODER CARD

Units & tens input to binary output decoder board. The decoder card converts units & tens inputs to binary to minimize the number of wires in the hoistway.

Features:

•  Simple diode matrix design
•  1-year factory warranty
•  1 amp silicon decoding diodes
•  Reliable terminal block hookup
•  Accepts voltage of 5 to 400 volts

Dimensions:

•  2.75″W x 4.65″H x 1.05″D
