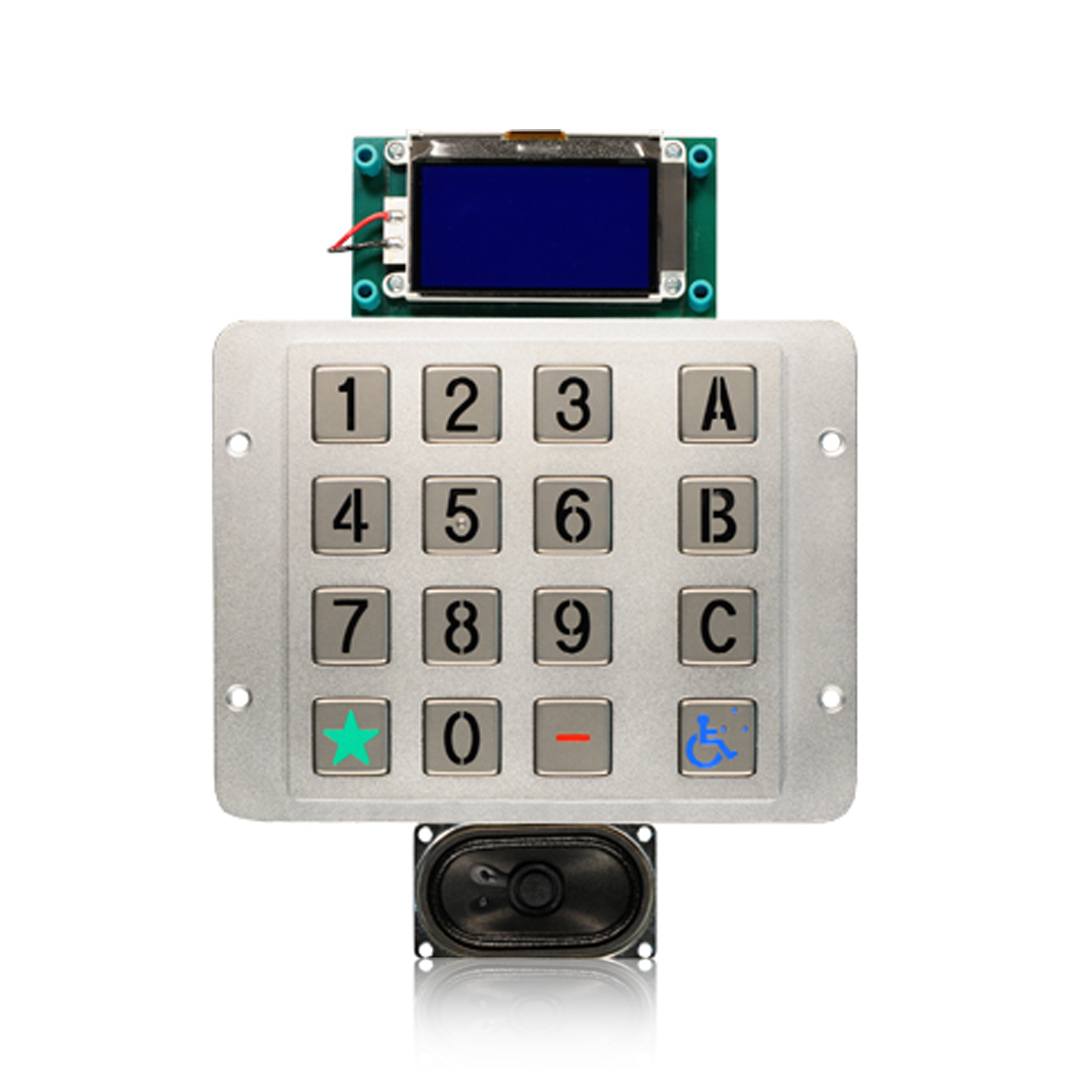

OKYLCD4-XXXX Keypad for Elite Touch for Code Compliance / Backup

KEYPAD FOR ELITE TOUCH ®

The keypad is part of our Elite Touch® product line to maintain code compliance where pushbuttons are still necessary, as well as provide a back up in the event the touchscreens are out of service.

Typical Applications:

•  Car Operating Panel

Features:

•  Stainless Steel keys
•  16mm high characters
•  8 ohm Speaker

Dimensions:

• Overall: 7.5625″W x 9.75″H x 1.50″D
• Display: 4.3125″W x 2.25″H x 1.50″D
• Keypad: 7.5625″W x 5.875″H x 1.50″D
• Speaker: 2.875″W x 1.625″H x 1.50″D

Note:

•  Maximum distance from keypad for display and speaker is 10 inches
•  For use with Elite Touch units
•  Power Supply #40102412 with Bracket #70000280 is recommended
•  Templates available for specific mounting dimensions* If using CIB-O no Power Supply is required or if 24VDC is available in the COP no Power Supply is required.
