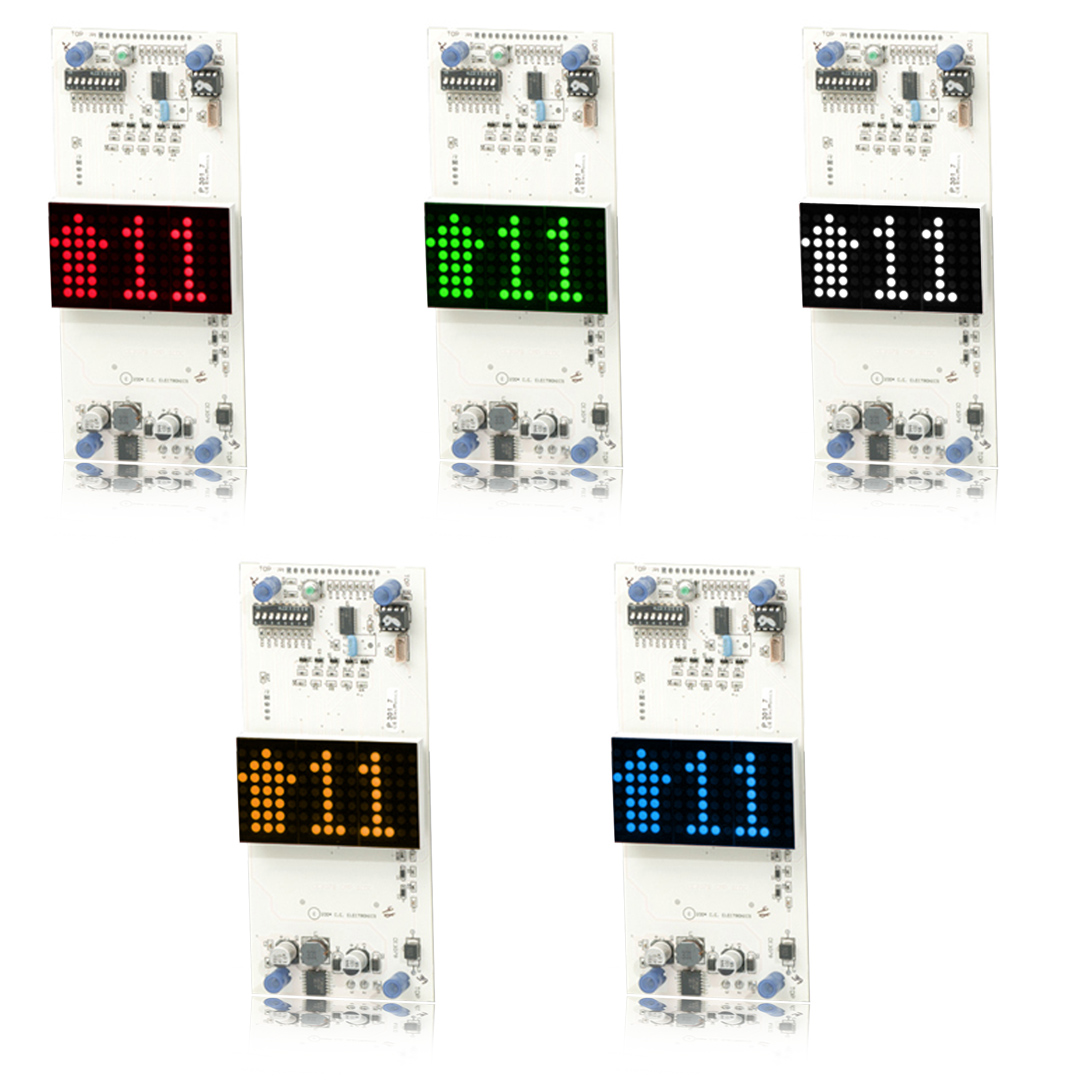

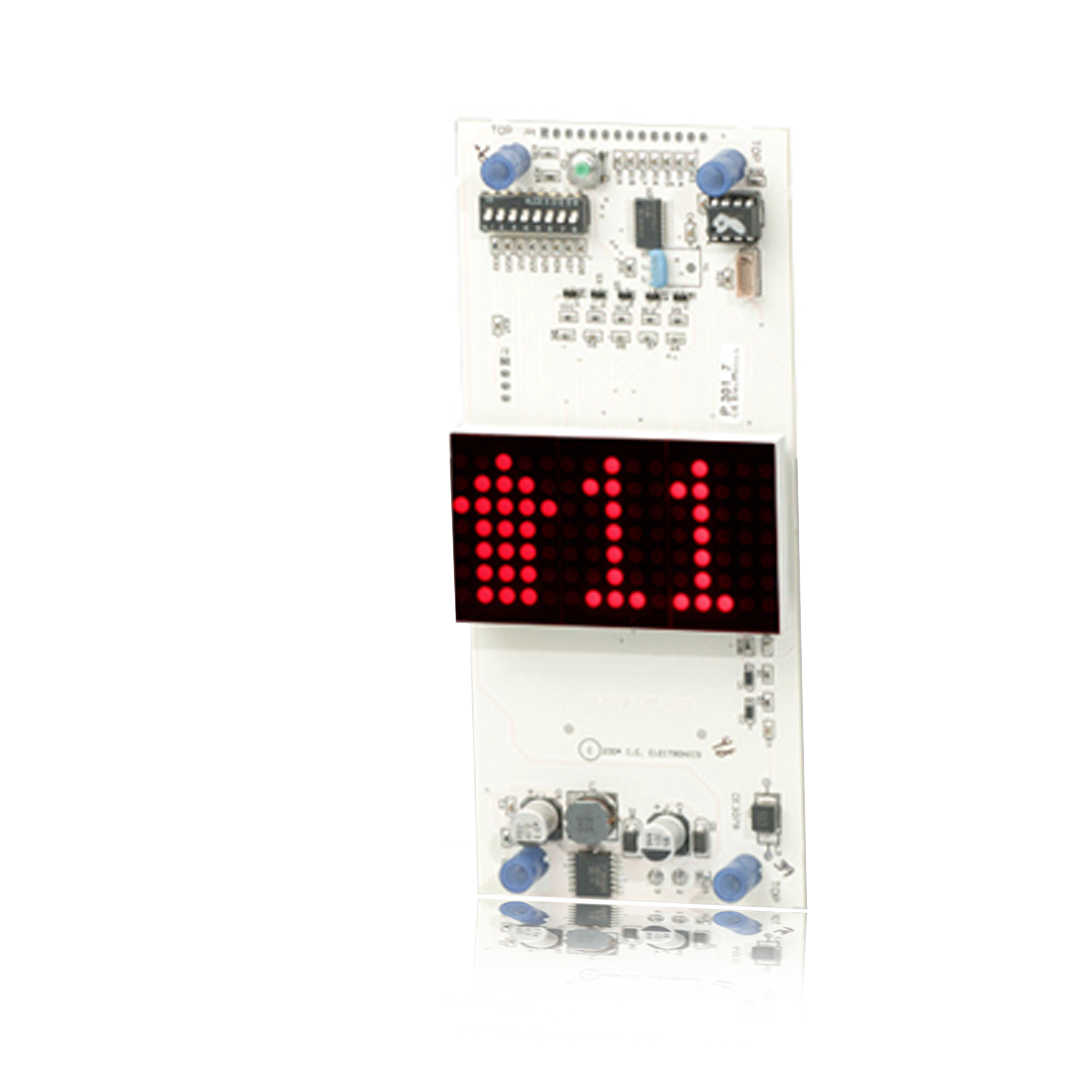

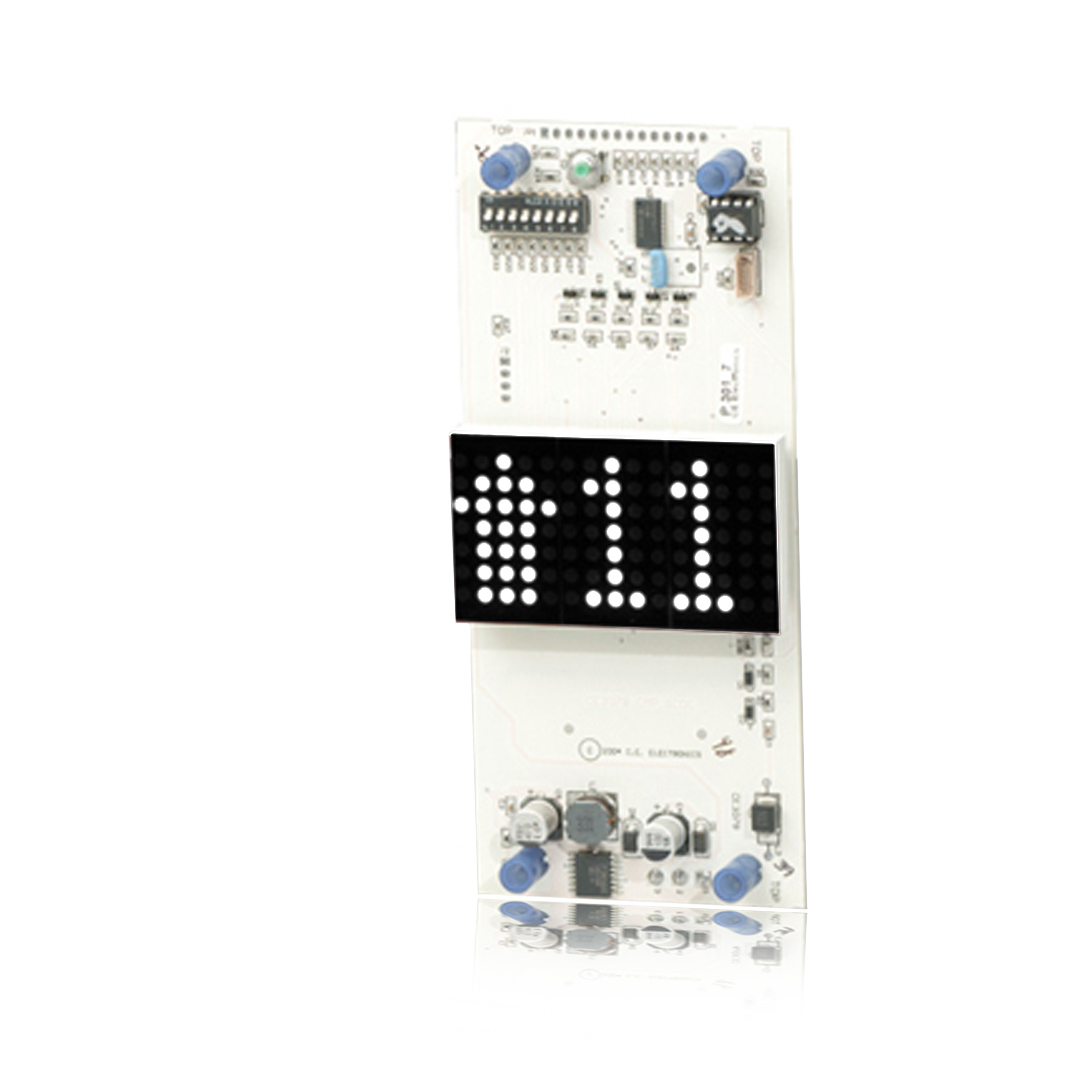

EV310-XXXXX | 30mm Dot Matrix 1 Inch Characters  68mm W x 160mm H x 44.5mm D  Vertical

DOT MATRIX

Dot Matrix LED Digital Indicator for floor position display, as well as car direction, if desired. Any alphanumeric or custom character can be displayed in either single digit with separate “UP” and “DOWN” arrows. Double-digit with a single “UP/DOWN” arrow, or triple-digit floor designations.

Typical Applications:

•  Car-OP Panel
•  Transom-car or Hall

Features:

•  Low-cost design
•  Self-contained unit
•  Latched inputs
•  Scrolling & rollover
•  Hall lantern option
•  Passing chime output
•  Self Testing
•  Message inputs
•  Error detection and correction feature

Dimensions:

•  68mm W x 160mm H x 44.5mm D  |  2.677″W x 6.299″H 1.75″D

Notes:

1. If a special voltage is required, please consult the factory.

2. A supply of 12-24VAC/DC positive or negative is also required.

3. *This is not a stand-alone unit. Must be used in conjunction with a Micro Comm interface.
